Champion distributes Mesco Idler Rolls. Featured here is the Mesco M-Series CEMA C Idler Roll. For quotes, orders and more information contact us today!

Features:

  • Flanged end housings ensure accurate concentric assembly, reinforced corner.
  • Solid 1" shaft.
  • Tube wall thickness maintained at tube housing connection point.
  • SKF Seize Resistant Ball Bearing.
  • Low T.I.R. .020"
  • Improved bearing alignment
  • Improved sealing efficiency.
  • Low running resistance 9 oz.
  • Low break away mass 3-1/2 oz.

Sealing System:

  • Lab tested and field proven.
  • Low drag sealing reduces shell wear.
  • Rigid precision molded components.
  • Minimum gaps.

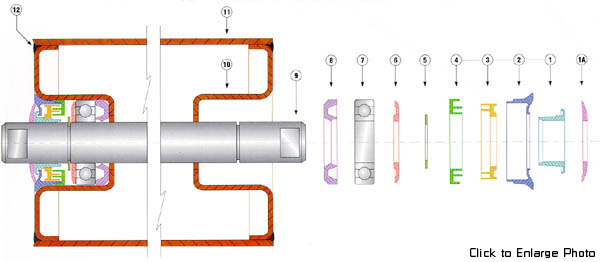

1

SHAFT SEAL - Forms grease filled seal with Flinger, non rubbing, protects bearing.

1A

WEATHER SHIELD - Protects seal from direct impingement during wash down, protects bearing.

2

FLINGER - Sheds dirt by centrifugal force, protects bearing.

3, 4

LABYRINTH SEALING SYSTEM - Grease filled, non-rubbing, protects bearing and saves power.

5

CIRCLIP - Positively locates shell to shaft. Minimizes shaft float.

6

FRONT BEARING SEAL - Provides additional, friction free protection for bearing and retains grease.

7

BEARING - SKF Seize Resistant Ball Bearing, developed specifically for use in idlers. Exceeds CEMA "C" capacity requirements.

8

BACK SEAL - With large grease cavity, lubricates bearing, prevents contamination from body of roll, acts as a spacer to ensure the correct location of the bearing.

9

SHAFT SEAL - Solid 1" accurately machined bright mild steel provides greater strength and less deflection than 3/4" shafting used by other manufacturers.

10

BEARING HOUSING - Deep drawn steel with collar flange and calibrated bearing bore. Collar flange reinforces corners of roll.

11

SHELL - From conveyor tubing wit close tolerance size and straightness. Tube ends are machined to facilitate accurate bearing housing location.

12

WELD - Continuously welded corner.
